Simmons 8-Point 3-9x40mm Riflescope Instruction Manual

ভূমিকা

This manual provides detailed instructions for the proper setup, operation, and maintenance of your Simmons 8-Point 3-9x40mm Riflescope. Please read this manual thoroughly before using your riflescope to ensure optimal performance and longevity. The Simmons 8-Point series is designed for reliability and precision, featuring fully coated optics for clear images and robust construction.

চিত্র 1: সামনে view of the Simmons 8-Point 3-9x40mm Riflescope. This image displays the objective lens, main tube, and eyepiece.

সেটআপ

রাইফেলস্কোপ মাউন্ট করা

Proper mounting is crucial for accuracy and consistent performance. Ensure the riflescope is securely attached to your rifle using appropriate mounting rings and bases (not included). Follow the manufacturer's instructions for your specific mounting hardware.

1. Attach the mounting bases to your rifle's receiver according to the rifle manufacturer's specifications.
2. Place the lower halves of the mounting rings onto the bases.
3. Carefully place the riflescope into the lower rings. Ensure the reticle is level and the eyepiece is positioned for comfortable eye relief.
4. Place the upper halves of the mounting rings over the riflescope and tighten the screws evenly, but do not overtighten.
5. Adjust the riflescope's position for optimal eye relief and reticle alignment. Once satisfied, fully tighten all mounting screws. Refer to your mount manufacturer's torque specifications.

Initial Zeroing

After mounting, the riflescope must be zeroed to your rifle. This process typically involves bore-sighting followed by live-fire adjustments.

• Bore-Sighting: Use a bore-sighting device or visually align the bore with a target at a short distance (e.g., 25 yards). Adjust the riflescope's windage and elevation turrets until the reticle aligns with the bore-sighted point of impact.
• Live-Fire Adjustment: At a safe shooting range, fire a group of shots at your desired zeroing distance (e.g., 100 yards). Use the windage and elevation adjustments to move the point of impact to the desired location on the target. The 1/4-MOA SureGrip audible-click adjustments provide precise control.

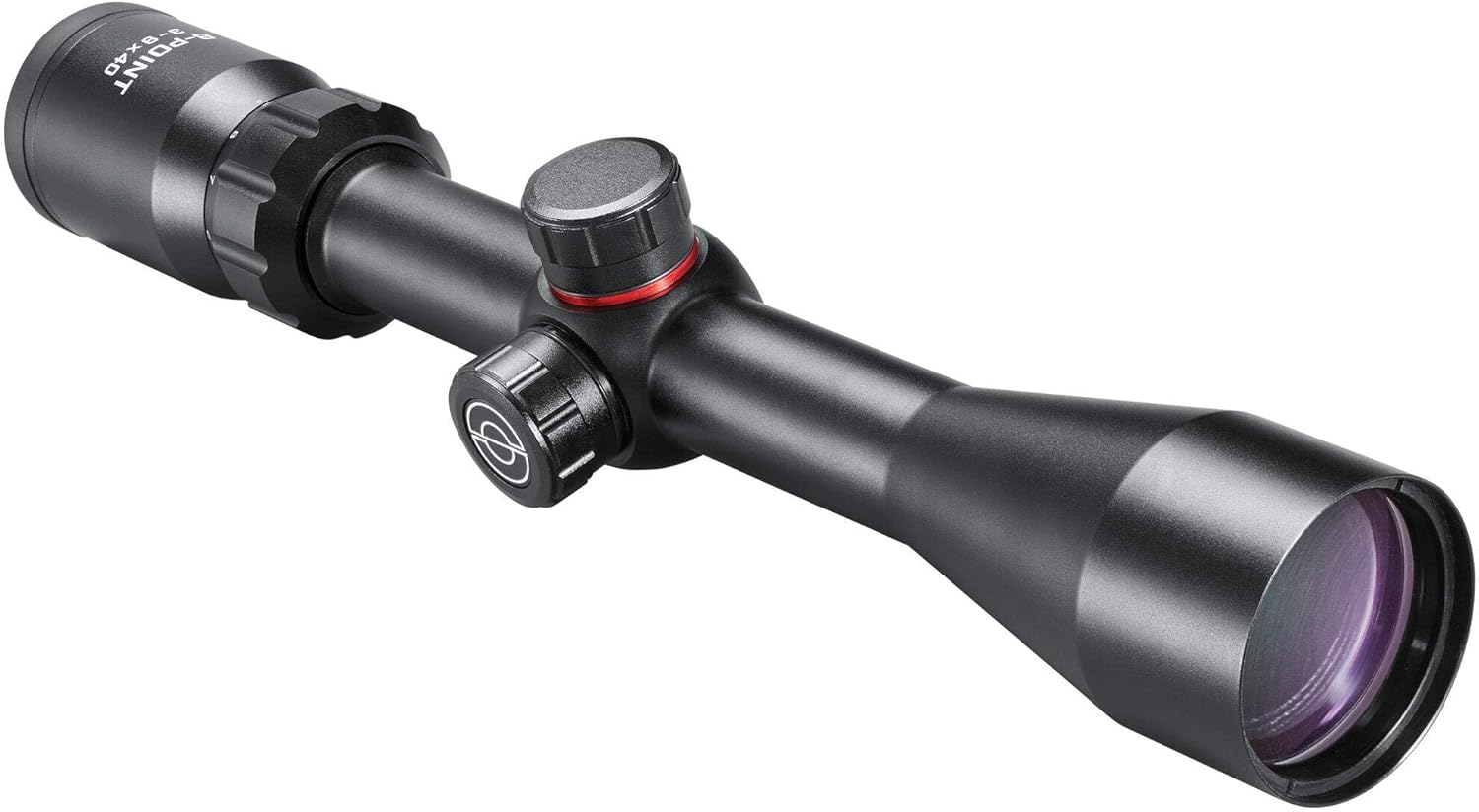

চিত্র ১: কোণযুক্ত view of the Simmons 8-Point 3-9x40mm Riflescope, highlighting the windage and elevation adjustment turrets and the eyepiece.

রাইফেলস্কোপ পরিচালনা করা

ম্যাগনিফিকেশন অ্যাডজাস্টমেন্ট

The Simmons 8-Point 3-9x40mm Riflescope features variable magnification from 3x to 9x. To adjust the magnification, rotate the power ring located near the eyepiece. Turn clockwise for higher magnification and counter-clockwise for lower magnification.

Focus Adjustment (QTA Eyepiece)

The QTA (Quick Target Acquisition) eyepiece allows for fast and easy target acquisition. To adjust the focus for your eye, look through the riflescope at a plain, bright background (like the sky or a blank wall). Rotate the eyepiece until the reticle appears sharp and clear. Avoid looking at a target while adjusting, as your eye may compensate for blurriness.

Windage and Elevation Adjustment (TrueZero System)

The riflescope is equipped with the TrueZero fingertip windage and elevation adjustment system. This system is designed to stay locked tight to zero, even under strenuous conditions. The adjustments are 1/4-MOA per click, meaning each click moves the point of impact approximately 1/4 inch at 100 yards.

• উচ্চতা বুরুজ: Located on top of the riflescope. Turning it clockwise typically moves the point of impact নিচে, এবং ঘড়ির কাঁটার বিপরীত দিকে এটিকে সরায় up.
• উইন্ডেজ টারেট: Located on the right side of the riflescope. Turning it clockwise typically moves the point of impact অধিকার, এবং ঘড়ির কাঁটার বিপরীত দিকে এটিকে সরায় বাম.

After making adjustments, ensure the turret caps are securely replaced to protect the mechanisms.

রক্ষণাবেক্ষণ

Proper care and maintenance will ensure your Simmons riflescope provides years of reliable service. The riflescope is designed to be waterproof, fogproof, and recoilproof.

• লেন্স পরিষ্কার করা: Use a soft, clean lens cloth or a lens brush to remove dust and loose debris. For smudges or fingerprints, use a specialized lens cleaning solution and a clean microfiber cloth. Avoid using harsh chemicals or abrasive materials.
• বাইরের অংশ পরিষ্কার করা: রাইফেলস্কোপের বাইরের অংশটি নরম, ঘ দিয়ে মুছুন।amp cloth to remove dirt or grime. Dry thoroughly.
• সঞ্চয়স্থান: Store the riflescope in a cool, dry place, preferably in a protective case, when not in use. Avoid extreme temperatures and high humidity.
• পরিদর্শন: মাউন্টিং স্ক্রুগুলির শক্ততা পর্যায়ক্রমে পরীক্ষা করুন।

সমস্যা সমাধান

If you encounter issues with your riflescope, consider the following common troubleshooting steps:

• Blurred Image/Reticle:
  • Ensure the QTA eyepiece is correctly focused for your eye (see "Focus Adjustment").
  • Check for dirt or smudges on the lenses and clean them as described in the "Maintenance" section.
• Inconsistent Point of Impact:
  • Verify that the riflescope is securely mounted and all mounting screws are tightened to the manufacturer's specifications.
  • Check for loose components on the rifle itself (e.g., barrel, stock).
  • Ensure ammunition consistency.
  • Confirm proper shooting technique.
• Difficulty Adjusting Windage/Elevation:
  • Ensure turret caps are removed before attempting adjustments.
  • If turrets feel stiff, do not force them. Contact customer support.

For issues not resolved by these steps, please contact Simmons customer support.

স্পেসিফিকেশন

ওয়্যারেন্টি এবং সমর্থন

For information regarding warranty coverage, product registration, or technical support, please refer to the official Simmons webসাইটে যান অথবা তাদের গ্রাহক পরিষেবা বিভাগের সাথে যোগাযোগ করুন। ক্রয়ের প্রমাণ হিসেবে আপনার ক্রয়ের রসিদটি রাখুন।

Simmons Official Webসাইট: www.simmonsoptics.com

Note: Specific warranty terms may vary by region and date of purchase.
