ফিলিপস লাইটিং স্প্লে এলইডি আউটডোর ওয়াল লাইট - মডেল 929003188201 নির্দেশিকা ম্যানুয়াল

1. ভূমিকা

The Philips Splay LED Outdoor Wall Light, model 929003188201, is designed to provide warm, diffused white light for various outdoor environments. This durable, anthracite-colored fixture is constructed from high-quality aluminum and features an IP44 rating, ensuring protection against splashing water. It is ideal for illuminating gardens, patios, and entrance areas, combining functional and decorative lighting to create a pleasant aesthetic on your wall.

Image 1.1: The Philips Splay LED Outdoor Wall Light, showcasing its design and warm white illumination.

2. নিরাপত্তা তথ্য

এই পণ্যটি ইনস্টল বা পরিচালনা করার আগে দয়া করে সমস্ত সুরক্ষা নির্দেশাবলী পড়ুন এবং বুঝুন। এই নির্দেশাবলী অনুসরণ না করলে বৈদ্যুতিক শক, আগুন বা অন্যান্য বিপদ হতে পারে।

• Always disconnect power at the main circuit breaker before attempting any installation, maintenance, or repair.
• বৈদ্যুতিক তারের পদ্ধতি সম্পর্কে যদি আপনি অনিশ্চিত থাকেন, তাহলে একজন যোগ্যতাসম্পন্ন ইলেকট্রিশিয়ান দ্বারা ইনস্টলেশন করা উচিত।
• Ensure proper grounding of the fixture according to local electrical codes.
• Do not modify the product in any way, as this may void the warranty and create safety risks.
• পণ্যটিকে দাহ্য পদার্থ থেকে দূরে রাখুন।
• This product is designed for outdoor use and is rated IP44 for protection against splashing water. Do not immerse in water.

3. প্যাকেজ বিষয়বস্তু

ইনস্টলেশন শুরু করার আগে সমস্ত উপাদান উপস্থিত আছে কিনা তা যাচাই করুন:

• Philips Splay LED Outdoor Wall Light fixture (1 unit)
• মাউন্টিং হার্ডওয়্যার (স্ক্রু, ওয়াল প্লাগ)
• নির্দেশিকা ম্যানুয়াল (এই নথি)

4. সেটআপ এবং ইনস্টলেশন

Follow these steps for safe and correct installation of your outdoor wall light:

1. ইনস্টলেশন এলাকা প্রস্তুত করুন: Turn off the main power supply to the installation area at your circuit breaker. Ensure the power is completely off before proceeding.
2. মাউন্ট অবস্থান নির্বাচন করুন: Choose a suitable, flat outdoor wall surface for mounting. A flat surface ensures easier and more secure installation.
3. মার্ক ড্রিলিং পয়েন্ট: Use the light fixture's mounting bracket as a template to mark the desired drilling points on the wall.
4. ড্রিল গর্ত: Drill holes at the marked points. Insert the provided wall plugs into the drilled holes.
5. তারের সংযোগ: Carefully connect the electrical wires from your power supply to the fixture's terminals. Ensure correct connections for Live (L), Neutral (N), and Ground (GND) wires according to local electrical wiring codes. Secure all connections tightly.
6. ফিক্সচার মাউন্ট করুন: Align the fixture with the wall plugs and secure it firmly to the wall using the provided screws.
7. টেস্ট অপারেশন: Restore power at the main circuit breaker and test the light to ensure it functions correctly.

Image 4.1: The Philips Splay LED Outdoor Wall Light after successful installation on an exterior wall.

5. অপারেটিং নির্দেশাবলী

The Philips Splay LED Outdoor Wall Light is designed for straightforward operation. Once properly installed and connected to your home's electrical system, it will illuminate when power is supplied to the circuit it is connected to. For automated control, you may connect the light to an external light switch, timer, or motion sensor (these control devices are not included with the product and must be purchased separately).

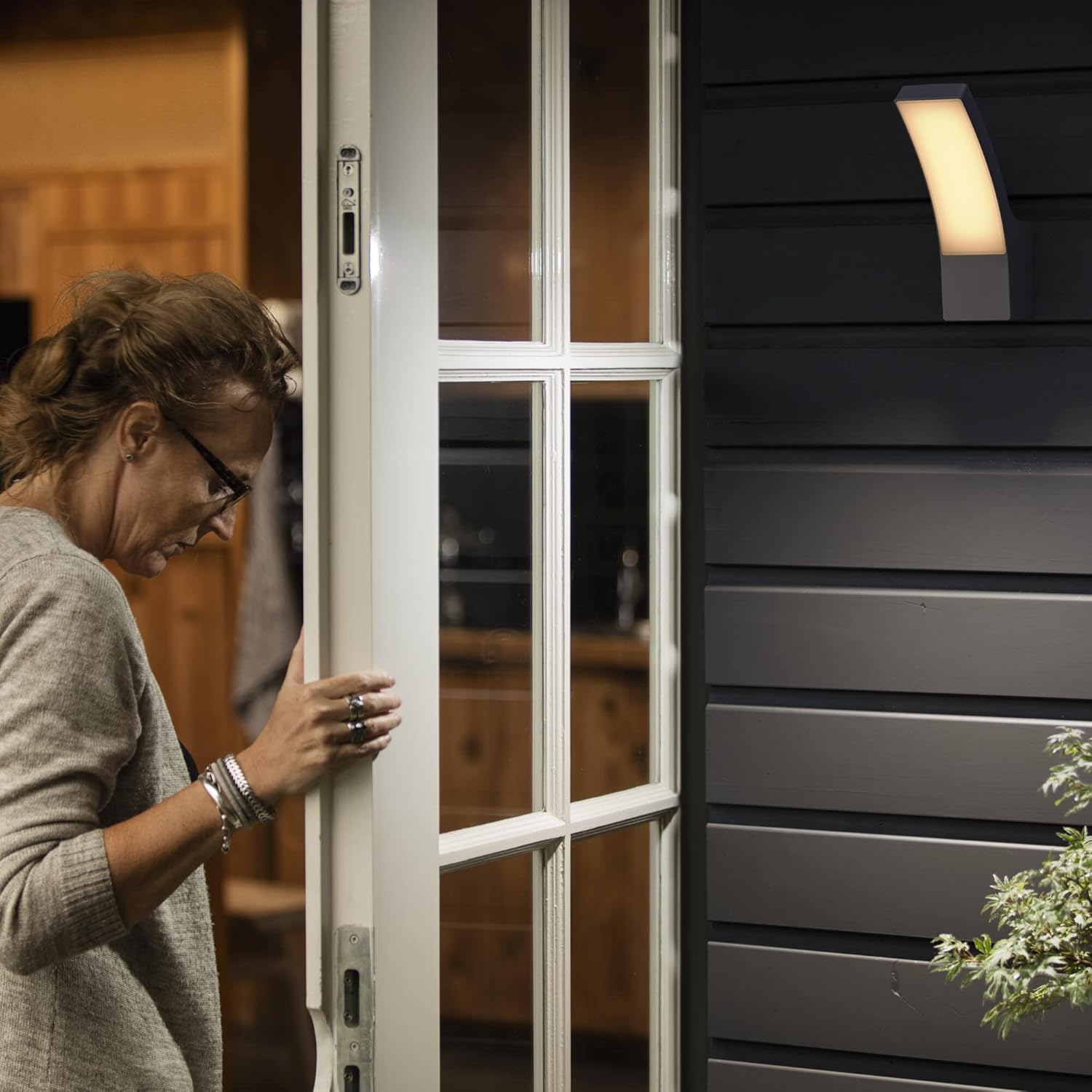

Image 5.1: The Philips Splay LED Outdoor Wall Light providing warm illumination for an outdoor entrance.

6. রক্ষণাবেক্ষণ

To ensure the longevity and optimal performance of your Philips Splay LED Outdoor Wall Light, follow these simple maintenance guidelines:

• পরিষ্কার করা: Regularly clean the exterior of the fixture with a soft, damp cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
• পরিদর্শন: Periodically inspect the fixture for any signs of physical damage, such as cracks in the housing or frayed wiring. If any damage is observed, immediately disconnect power to the fixture and consult a qualified electrician for repair or replacement.
• এলইডি: The LEDs in this fixture are integrated and are not designed to be user-replaceable. Do not attempt to open the sealed LED compartment.

7. সমস্যা সমাধান

If you encounter issues with your Philips Splay LED Outdoor Wall Light, refer to the following common problems and solutions:

• আলো জ্বলে না:
  • Check if the power supply to the circuit is active at your main circuit breaker.
  • Ensure all electrical connections within the fixture are secure and correctly wired.
  • If connected to an external switch or sensor, verify it is in the 'ON' position or functioning correctly.
• Light flickers or dims unexpectedly:
  • Check for any loose wiring connections at the fixture or junction box.
  • ভলিউম নিশ্চিত করুনtage supply is stable and within the product's specified range.
  • যদি সমস্যাটি থেকে যায়, তাহলে একজন যোগ্যতাসম্পন্ন ইলেকট্রিশিয়ানের সাথে পরামর্শ করুন।

For problems not listed here, please contact Philips Lighting customer support.

8. স্পেসিফিকেশন

Technical details for the Philips Splay LED Outdoor Wall Light:

Image 8.1: Dimensional diagram of the Philips Splay LED Outdoor Wall Light.

9. ওয়্যারেন্টি এবং সমর্থন

For detailed warranty information, terms, and conditions, please refer to the official Philips Lighting website or the documentation provided with your purchase. Keep your proof of purchase (receipt or invoice) as it will be required for any warranty claims.

For technical support, product inquiries, or assistance with troubleshooting, please visit the Philips Lighting support page or contact their customer service department through the contact information provided on their official webসাইট
